tna ener-freeze FFV 3

cooling & freezing tunnel

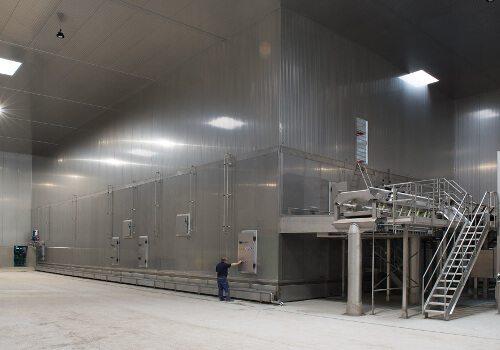

image of tna Ferguson ener-freeze® FFV 3, Ferguson ener-freeze® FFV 3 is a cooling & freezing solution with innovative air flow distribution technology to evenly freeze various potato products & shapes.

A highly efficient cooling and freezing system, the tna ener-freeze FFV 3 utilises air flow distribution technology to evenly freeze a wide range of potato products – whatever their shape. Thanks to the tunnel freezer’s innovative design, potato shapes, including sticks, cubes and wedges, can be frozen to a high quality, allowing for long production cycles without defrosting.

Benefits

  • Preserve they highest quality possible via technology that evenly freezes potato products – no matter their size.
  • Achieve energy savings via low power consumption per tonne of product.
  • Flexible operation to support multiple product types.

A highly efficient cooling and freezing system, the tna ener-freeze FFV 3 utilises air flow distribution technology to evenly freeze a wide range of potato products – whatever their shape. Thanks to the tunnel freezer’s innovative design, potato shapes, including sticks, cubes and wedges, can be frozen to a high quality, allowing for long production cycles without defrosting.

Benefits

  • Preserve they highest quality possible via technology that evenly freezes potato products – no matter their size.
  • Achieve energy savings via low power consumption per tonne of product.
  • Flexible operation to support multiple product types.

standard features

  • New fan design with high efficiency and air velocity control – creates an even air flow distribution
  • Multiple belt system design
  • Unique evaporator design of fins and refrigerant supply
  • Optimised pre-cooler design
  • Stainless steel execution (exception fans, pumps, drives, valves, bearings, belts)

optional features

  • Frequency controlled fans
  • Double belt in freezer section

specifications

tna ener-freeze FFV 3
model name FFV 12 FFV 18 FFV 25 FFV 30
execution mm (in) standard for French fries 9×9 (0.35×0.35)
capacity kg/hr (lbs/hr) 3000-30000 (6614-66139)
belt width mm (in) 1200 (47) 1800 (71) 2500 (98) 3000 (118)
tunnel height mm (in) 4040 (159) 4500 (177) 5100 (201) 7000 (276)
tunnel width mm (in) 5000 (197) 5600 (221) 6050 (238) 7600 (299)
all above specifications are subject to change and may differ according to product, please confirm when placing your order.
