tna quik-coat RD 5
dry ingredient roller dispensing unit
tna quik-coat RD 5

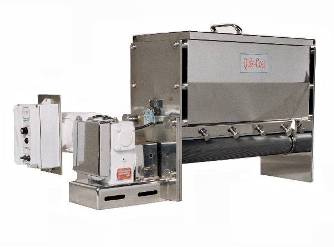

tna quik-coat® RD 5 is an innovatively designed roller dispenser for free flowing granular ingredients, such as salt or seeds. The tna quik-coat® RD 5 has a grooved roller that ensures a consistent application of the ingredient cross band up to 1500 mm (59”). The roller and hopper can be removed for cleaning and quick product changes.
Dry application of chocolate chips, sugar, candy sprinkles, salt, cinnamon & sugar, toffee pieces, yogurt pieces and more.
Meets sanitary requirements of both USDA and FDA processing plants.
Remains clean, no leakage from hopper.
standard features
- Positive drive dispensing roller
- Widths from 600mm to 1500mm (24″ to 59″) to fit all applications
- Drive base interchanges with other tna quik-coat® equipment
- Completely de-mountable components
optional features
- Separate hopper for quick changes
- Recovery conveyor
- Cantilever trolley
| tna quik-coat® RD 5 | |||||
|---|---|---|---|---|---|
| machine type | operating width
mm (in) |
application to | hopper capacity
L (US gal) |
machine length
(in) |
min. belt height
mm (in) |
| QC2-RD24 | 600 (23) | topical only | 39 (10) | 270 (11) | 1000 (39) |
| QC2-RD30 | 750 (29) | topical only | 49 (13) | ||
| QC2-RD36 | 900 (35) | topical only | 59 (16) | ||
| QC2-RD42 | 1050 (41) | topical only | 69 (18) | ||
| QC2-RD48 | 1200 (47) | topical only | 79 (21) | ||
| QC2-RD60 | 1500 (59) | topical only | 99 (26) | ||
| all above specifications are subject to change and may differ according to product, please confirm when placing your order. | |||||
