tna mogul MX

the ultimate combination of productivity, versatility, hygiene and safety

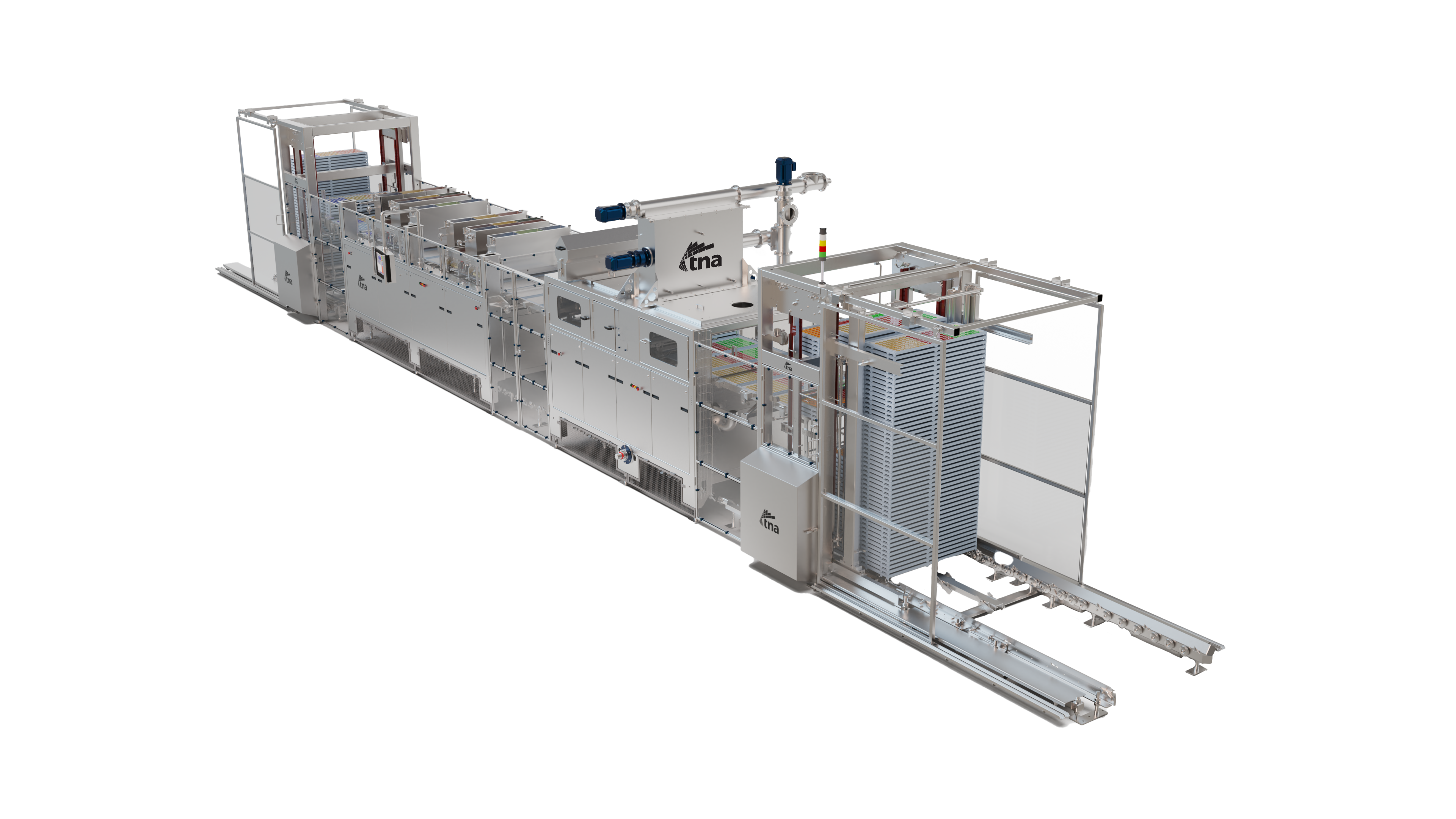

tna mogul MX

tna mogul MX, designed for the larger tray, provides a maximum capacity of up to 6000 kg/hr, depending on a specific product size, piece weight and starch conditions.

The tna mogul MX fully integrates the automatic tray stack feeder, starch section, depositors, tray stacker and pallet transport.

With unsurpassed versatility in product variation, the moguls accommodate a wide range of depositing pumps and suit a wide variety of starch-moulded products.

*subject to bag type, film and product

  • High volume, up to 35 tray per minute (TPM) production, depending on product shape, piece weight and starch conditions.

  • Designed around your existing tray size.

  • High quality confectionery through precision depositing pump movement and temperature controls.

  • Recipe-driven PLC control and servo-drives throughout.

  • Tray lift eliminates tailing and permits depositing of special products.

  • High degree of hygiene and sanitation with improved starch containment and full stainless steel execution.

tna mogul specifications
Model Type tna mogul ST tna mogul MX
Tray Size (typical) 820 x 400 mm 1220 x 440 mm
Mogul Speed Range* 20 – 35 tray/min 20 – 35 tray/min
Mogul Capacity* 1000 – 3500 kg/h 2000 – 6000 kg/h
Stack Height up to 60 trays** up to 60 trays**
Pallet 2, 3, 4 stacks 2, 3, 4 stacks

*Depending on starch conditions, product size, piece weight and combination
** Depending on tray height. Higher stacks can be considered

  • confectionery
  • gummies & jellies
  • marshmallows
  • nutraceutical
  • confectionery processing
