horizontal motion distribution conveyor

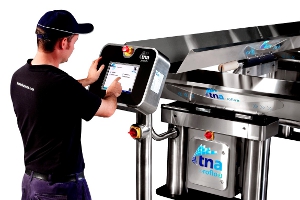

tna roflo® HM 3 is the ultimate horizontal conveying system that moves product via a slow forward horizontal motion followed by a fast return horizontal motion. Due to no vertical element, the tna roflo® HM 3 minimises flavor fall off and ensures zero flavour build up in the pan.

tna roflo® HM 3 is the ultimate horizontal conveying system that moves product via a slow forward horizontal motion followed by a fast return horizontal motion. Due to no vertical element, the tna roflo® HM 3 minimises flavor fall off and ensures zero flavour build up in the pan.

standard features

  • tna switcheroo design for total direction reversibility
  • Unique gateless design
  • Stainless steel pans
  • Instantaneous conveyor movement
  • Programmable closed-loop servo
  • Drives – long stroke, low frequency
  • 2.4m, 3.0m and 3.6m (95″, 118″ ad 142″) standard pan lengths
  • 1 controller for up to 8 pans
  • Upstream call output (UCO)
  • Auto stand-by

optional features

  • Lifteroo

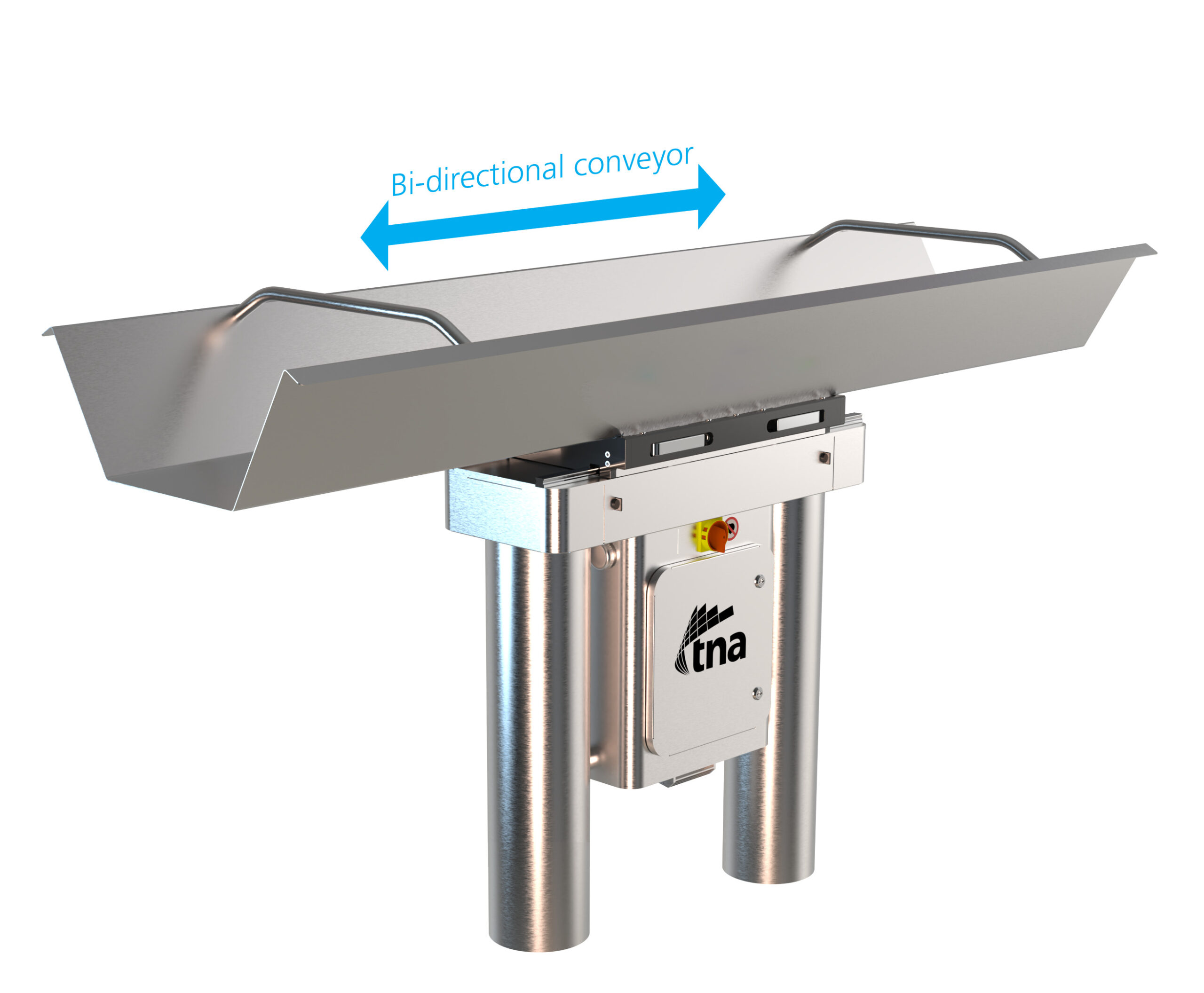

  • Bi-directional and reversible feed
  • Custom length pans
  • Long pan lengths over 30m (1181″)
  • Proportional discharge control (pdc)
  • Plant integration control (PIC)
  • Product metering
  • On-line seasoning
  • Quick release pans

specifications

tna roflo ® HM 3 standard large cross feeders
pan section size
width x depth mm (in) 585 (23) x 200 (8) 735 (29) x 330 (13) 525 (21) x 150 (6)
transfer rate kg/hr (lbs/hr)
density @55 g/L (lbs/gal) 2283 (5033) 4988 (10997) 295 (650)
density @100 g/L (lbs/gal) 4160 (9171) 9070 (19996) 536 (1241)
density @200 g/L (lbs/gal) 8320 (18342) 18140 (39992) 1072 (2363)
capacity m3/hr (cfm) 41.6 (24.5) 90.7 (53.4) 5.3 (3.1)
noise level dB(A) @ 1m 70 70 70
transfer speed max m/min (ft/min) 15 (49.2) 15 (49.2) 4 (13.1)
power consumption kW (hp) ** ** 0.4 (0.5)
floor loading
pan mass  kg/m (lbs/ft) 23 (15.4) 34 (22.9) 13.5 (9.1)
drive & base unit dead load kg (lbs) 321 (707.7) 321 (707.7) 110 (242.5)
all above specifications are subject to change and may differ according to product, please confirm when placing your order.
**varies depending on application load, check with tna roflo support team
