vibratory motion distribution conveyor

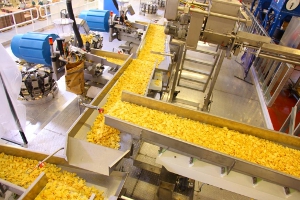

tna roflo® VM 3 is the ultimate conveying system that moves product via vibratory motion. Due to both the horizontal and vibratory movement, the tna roflo® VM 3 is well-suited to even out product highs and lows, and offers the most efficient method for in-line storage.



tna roflo® VM 3 is the ultimate conveying system that moves product via vibratory motion. Due to both the horizontal and vibratory movement, the tna roflo® VM 3 is well-suited to even out product highs and lows, and offers the most efficient method for in-line storage.



standard features

  • Compact microprocessor controller
  • Built in feedback sensor into the electromagnetic coil
  • Connectivity via a plug and socket
  • Continuous welded construction

optional features

  • Gated formats
  • Wet wash and dry environment designs (available on the full range)
  • Vibratory scarf feeders
  • Seasoning solutions
  • Fully automated multipack systems at high speed
  • Custom pans

specifications

tna roflo® VM 3 standard large cross feeders
pan section size
width x depth mm (in) 450 (17.7) x 150 (5.9) 750 (29.5) x 200 (7.9) 300 (11.8) x 150 (5.9)
transfer rate kg/h (lbs/hr)
density @55 g/L (lbs/gal) 1114 (2456) 3713 (8186) 743 (1638)
density @100 g/L (lbs/gal) 2025 (4464) 6750 (14881) 1350 (2976)
density @200 g/L (lbs/gal) 4050 (8929) 13500 (29762) 2700 (5952)
capacity m3/hr (cfm) 20 (11.8) 68 (40) 14 (8.2)
noise level dB(A) @ 1m 70 70 70
transfer speed max m/min (ft/min) 15 (49.2) 15 (49.2) 15 (49.2)
power consumption kW (hp) 0.25 (0.3) 0.4 (0.5) 0.1 (0.1)
floor loading
conveyor mass  kg/m (lbs/ft) 200 (134) 350 (235) 150 (101)
all above specifications are subject to change and may differ according to product, please confirm when placing your order
