tna ultra-peel ODC 3
centrifugal dry de-skinner
tna ultra-peel ODC 3

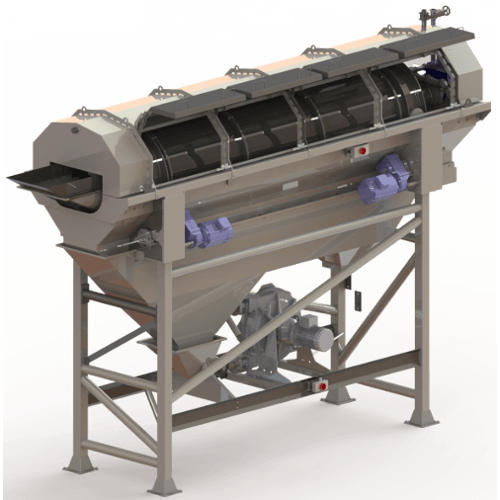

The perfect pair for its steam peeling counterpart, the tna ultra-peel ODC 3 is a dry de-skinning system with a difference. Using centrifugal technology, it peels off loosened root vegetable skin with minimal product loss. It even has an optional wet section for washing after peeling and helps to keep your maintenance costs low.
Low maintenance costs.
Minimal product loss during the de-skinning process results in higher yield.
Low energy consumption.
standard features
- Special, slotted drum design without brushes
- High efficiency direct drives
- Spray pipes for internal cleaning system (CIP)
- Stainless steel execution (exception fans, pumps, drives, valves, bearings, belts)
optional features
- Waste collection screw auger
- Waste pump
- Wet section to wash product after de-skinning
| tna ultra-peelODC 3 | ||||||
|---|---|---|---|---|---|---|
| model name | ODC 2000-08 | ODC 2000-12 | ODC 2000-15 | ODC 3000-08 | ODC 3000-12 | ODC 3000-15 |
| capacity kg/hr (lbs/hr) | 10000 (22000) | 15000 (33000) | 17000 (37480) | 14000 (30870) | 24000 (52900) | 31000 (68000) |
| motor drum kW (hp) | 11 (15) | 15 (20) | 11 (15) | 15 (20) | ||
| motor auger kW (hp) | 2.2 (3) | 4 (5) | 2.2 (3) | 4(5) | ||
| length mm (in) | 3850 (152) | 4850 (191) | ||||
| width mm (in) | 1400 (55) | 1800 (71) | 2100 (83) | 1400 (55) | 1800 (71) | 2100 (83) |
| height mm (in) | 2050 (80) | 2450 (96 ) | 2750 (108) | 2050 (80) | 2450 (96) | 2750 (108) |
| empty weight kg/hr (lbs/hr) | 1700 (3748) | 2100 (4630) | 2400 (5291) | 2100 (4630) | 2500 (5512) | 2800 (6173) |
| operation weight kg (lbs) | 2100 (4630) | 2500 (5512) | 2800 (6173) | 2500 (5512) | 2900 (6394) | 3200 (7055) |
| all above specifications are subject to change and may differ according to the product, please confirm when placing your order. | ||||||
