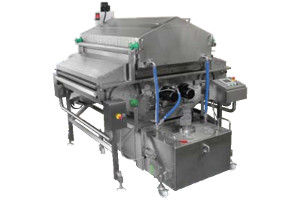

Arcall intelli-spin® 700

cross band disc spraying system with conveyor

The Arcall intelli-spin® 700 series uses advanced spinning disc technology to provide accurate and consistent liquid and slurry application. This slurry spraying system uses an innovative cantilever design featuring spinning disc technology to enable even seasoning application for a range of food products. Designed to fit seamlessly over a production line, the Arcall intelli-spin® 100 evenly coats the top and/or bottom side of food products as they are transported via a conveyor, using overlapping spinning disc spray patterns.

Benefits

  • Achieve high performance coating of the top and/or bottom side of food products at up to 552 l/hr (145.8 US gal/hr).
  • Experience accurate and consistent coating using overlapping spinning disc spray patterns.
  • Realise faster return on investment by capturing and reusing unsprayed oil to reduce waste and raw material costs.
  • Lower your TCO with an easy-to-maintain modular design that allows easy access to spray heads and drives for operation and maintenance.
  • Surpass your OEE goals with removable heads for easy cleaning, replacement or upgrade.
  • Enhance sustainability with a low mist spray system and negative pressure spray zones that contribute to a safer and more hygienic working environment.

The Arcall intelli-spin® 700 series uses advanced spinning disc technology to provide accurate and consistent liquid and slurry application. This slurry spraying system uses an innovative cantilever design featuring spinning disc technology to enable even seasoning application for a range of food products. Designed to fit seamlessly over a production line, the Arcall intelli-spin® 100 evenly coats the top and/or bottom side of food products as they are transported via a conveyor, using overlapping spinning disc spray patterns.

Benefits

  • Achieve high performance coating of the top and/or bottom side of food products at up to 552 l/hr (145.8 US gal/hr).
  • Experience accurate and consistent coating using overlapping spinning disc spray patterns.
  • Realise faster return on investment by capturing and reusing unsprayed oil to reduce waste and raw material costs.
  • Lower your TCO with an easy-to-maintain modular design that allows easy access to spray heads and drives for operation and maintenance.
  • Surpass your OEE goals with removable heads for easy cleaning, replacement or upgrade.
  • Enhance sustainability with a low mist spray system and negative pressure spray zones that contribute to a safer and more hygienic working environment.

standard features

  • Top spray with spinning discs (removable)
  • Integral wire mesh conveyor
  • Reservoir with integral filtration
  • Pump chamber

optional features

  • Removable bottom spray with spinning discs
  • Rotating maintenance trolley
  • Double heads – for high throughput capability
  • Slurry application – features to maintain suspension in application
  • Glaze application – chilled features
  • Water jacket heating
  • Mist control
  • Cleaning aid
  • Integral PU belt conveyor
  • Out-feed conditioning conveyor
  • Out-feed cross conveyor
  • Cracker breaker
  • In-feed row breaker

specifications

Arcall intelli-spin® 700
model name operating width mm (in) application to spray capacity to belt L/hr (US gal/hr) full load current amps line-speed m/min (in/min) machine length mm (in) min. belt height mm (in)
min max min – max
SPIN7-120400 1200 (47) top only 36 (9.5) 144 (38) 94 2 to 45 (79 to 1772) 2000 (79) 950 (37)
SPIN7-120404 top & bottom 72 (19) 288 (76) 96
SPIN7-120800 top only 48 (12.7) 276 (72.9) 96
SPIN7-120804 top & bottom 72 (19) 432 (114) 98
SPIN7-120808 top & bottom 96 (25.4) 552 (145.8) 99
SPIN7-121200 top only 72 (19) 276 (72.9) 98
SPIN7-121204 top & bottom 96 (25.4) 552 (145.8) 100
SPIN7-121208 top & bottom 120 (31.7) 552 (145.8) 102
SPIN7-150400 1500 (59) top only 36 (9.5) 144 (38) 94
SPIN7-150404 top & bottom 72 (19) 288 (76) 96
SPIN7-150800 top only 48 (12.7) 276 (72.9) 96
SPIN7-150804 top & bottom 72 (19) 432 (114) 98
SPIN7-150808 top & bottom 96 (25.4) 552 (145.8) 99
SPIN7-151400 top only 84 (22.2) 276 (72.9) 99
SPIN7-151406 top & bottom 120 (31.7) 552 (145.8) 102
SPIN7-151412 top & bottom 156 (41.2) 552 (145.8) 104
SPIN7-181200 1800 (71) top only 72 (19) 276 (72.9) 110
SPIN7-181212 top & bottom 144 (38) 552 (145.8) 115
all above specifications are subject to change and may differ according to product, please confirm when placing your order.
