cross band disc spraying system

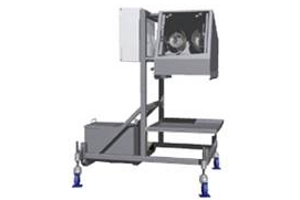

Arcall intelli-spin® 100 series is an innovatively designed cantilever spray system that uses spinning disc technology to provide accurate and consistent liquid and slurry application. The Arcall intelli-spin® 100 fits over a production line an evenly coats the tops of food products as they travel along your conveyor system, using overlapping spinning disc spray patterns.

Arcall intelli-spin® 100 series is an innovatively designed cantilever spray system that uses spinning disc technology to provide accurate and consistent liquid and slurry application. The Arcall intelli-spin® 100 fits over a production line an evenly coats the tops of food products as they travel along your conveyor system, using overlapping spinning disc spray patterns.

standard features

  • Top spray with spinning discs
  • Reservoir with integral filtration

optional features

  • Slurry application – features to maintain suspension in application
  • Glaze application – chilled features
  • Water jacket heating

specifications

Arcall intelli-spin® 100
model name operating width  mm (in) application to total discs spray capacity to belt L/hr (US gal/hr) full load current current amps machine length mm (in) min. belt height mm (in)
min max
SPIN1-050201 500 (20) top only 18 72 (19) 94 (24.8) 785 1750 (69) 1150 (45)
SPIN1-050402 top only 36 144 (38) 94 (24.8) 1470
SPIN1-100301 1000 (39) top only 36 108 (28.5) 93 (24.6) 785 2600 (102) 1100 (43)
SPIN1-100602 top only 36 216 (57.1) 95 (25.1) 1470
SPIN1-120401 1200 (47) top only 36 144 (38) 94 (24.8) 785 2900 (114)
SPIN1-120802 top only 48 276 (72.9) 96 (25.4) 1470
SPIN1-150401 1500 (59) top only 36 144 (38) 94 (24.8) 785 3300 (130)
SPIN1-150802 top only 48 276 (72.9) 96 (25.4) 1470
SPIN1-180603 1800 (71) top only 36 216 (57.1) 95 (25.1) 785 3600 (142)
SPIN1-181204 top only 72 276 (72.9) 98 (25.9) 1470
all above specifications are subject to change and may differ according to product, please confirm when placing your order.
