tna trenza
hanging promotional strip applicator

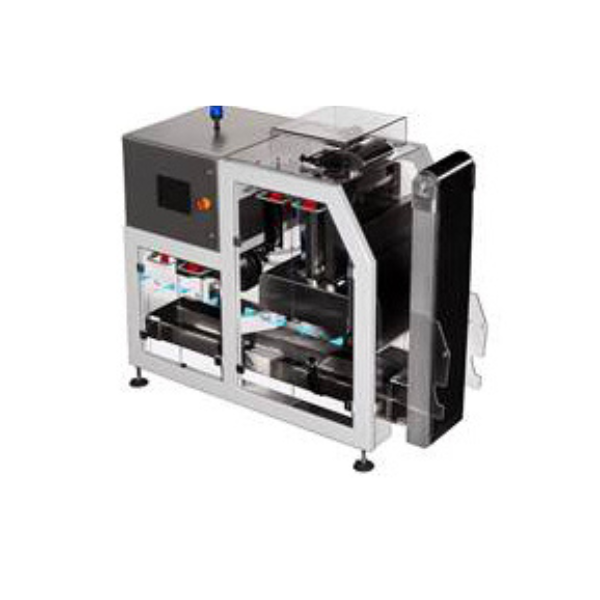

tna trenza
A simple, yet sophisticated promotional strip pack applicator – the tna trenza® – features precision strip cutting and automatic bag counting and hole punching, for the seamless application of hanging strips to a variety of bag formats and sizes. All in all, lowering total cost of ownership and securing the highest return on investment for hanging strip solutions.
Attain optimum performance and speeds of up to 100 bpm on promotional strip string bags.
Seamless integration allows for excellent operational efficiency by drawing bags directly from the packaging system.
tna’s uniquely designed high-precision strip cutting can help reduce waste and rework to increase profitability.
Create presentable retail-ready hanging strips that with one simple pull, allow the removal of a bag without damage.
Make the most of touchscreen control to maximise uptime and ensure flawless operation.
Thanks to its compact design, you can minimise the use of floor space to enhance sustainability, and ensure easy mobility for complete flexibility.
standard features
- Jaw unit
- Stepper unit
- Bag sensors
- End of strip sensor
- Seamless integration with fingertip control
- Compatibility with any packaging system (rotary or flat jaw)
- 2 x servo motors
| trenza® | ||||
|---|---|---|---|---|
| performance | maximum running speed bpm | 100 | ||
| utilities | controller | CX4 | ||
| power consumption kW (hp) | 4.7 (6.3) | |||
| voltage VAC | 208 – 460 | |||
| specifications | width | roll diameter | core diameter | |
| maximum hanging strip mm (in) | 40 (1.6) | 350 (13.8) | 75 (3) | |
| width | length | height | ||
| machine dimensions mm (in) | 750 (30) | 3127 (123) | 1667 (65.6) | |
| weight kg (lbs) | 800 (1764) | |||
| all above specifications are subject to change and may differ according to product, please confirm when placing your order. | ||||
